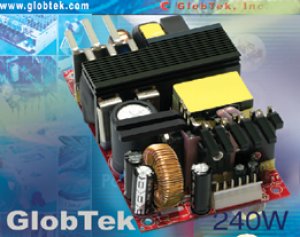

GT(M)91110P series delivers up to 240W of continuous output power with 20CFM of airflow (150W convection cooled) with output voltages ranging from: 3.3V to 48V in 0.1V increments. This high efficiency, 85% typ., GlobTek’s family of Open-Frame/PCB Mount Style power supplies are available in various Input/Output configurations: Locking Headers, Screw Terminals, Leads, i.e. Accepts Universal Input: 90-264 Vac 47-63 Hz, features regulated output with low ripple, has Class B EMI Filter and P.F.C. Correction Option; Built-in Protection: O.C./S.C., O.V, O.T. Packaged in an industry standard 3.0 X 5." X 1.7 (in), the series is ideal for 1U applications. Pending cUL/DEMKO International Safety Agencies for use with Medical EN 60601.1 or Information Technology 60950 Equipment applications. The series meets Conducted and Radiated EMI Class B and complies with the immunity requirements under EN 61000 series of standards. It is available in open frame, open frame with wire harness, open base plate of any size and L-Bracket with perforated top cover. 5-year warranty. Made in USA option available upon request.
